APPLICATIONS:
Glanding For glanding circular unarmoured cables.
PRODUCT FEATURES:
- Explosion proof
- Weatherproof
OPTIONAL ACCESSORIES:
- PVC shroud
- Earth tag
- Adaptors and reducers

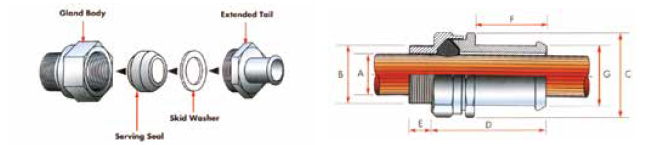

CONSTRUCTION:
Material Bright nickel plated extruded brass gland body, serving seal, skid washer and back nut (also available in stainless steel).
Seal Rubber.
O-Ring Rubber.
CHARACTERISTICS:
Operating Temperature Range -20°C to 80°C (up to 100°C for short periods).
Protection Class IP66.
Relevant Standards AS/NZS 2380.1-1989, AS/NZS 2380.2-1991, AS/NZS 1939-1990
Area Classification Class 1, Zone 1, Group 1 & IIC, Class II.
Apparatus Group Exd, Exe, Exp DIP.
Certificate of Conformity ANZEx 07.3024.
COMPLIANCE DOCUMENT:
GWPMEX/GWPEX Certificate of Compliance
