APPLICATIONS:
Service Cables For domestic, commercial and industrial purposes. Meets the requirements for connection to the point of supply on the Vector network.
Consumer Mains Underground domestic and commercial subdivisions.
INSTALLATION CONDITIONS:
- In ground (with mechanical protection)
- In duct
- In trench
PRODUCT FEATURES:
- Plain annealed circular stranded conductor
- Metre marking for better length control
- UV stabilised
- Flame retardant
- Heat, oil and chemical resistant (See Technical Section)

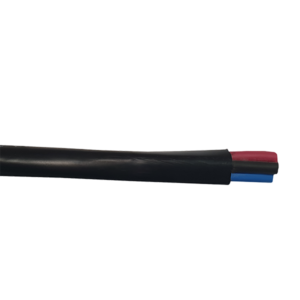

CONSTRUCTION:
Conductor Annealed plain copper stranded (Class 2).
Insulation X-90 (XLPE)
Outer Sheath SPVC
CHARACTERISTICS:
Operating Temperature Range Fixed -20 to 90°C
Maximum Conductor Temperature 90°C (Current ratings are based on 30°C air temp. See technical section for de-rating factors).
Rated Voltage Uo/U 0.6/1kV.
Minimum Bending Radius Fixed 12 x cable diameter.
Sheath Colour Black.
Standard Core Colours
2 Cores: Red, Black
4 Cores: Red, White, Blue, and Black
Relevant Standards AS/NZS 5000.1, AS/NZS 4026, AS/NZS 1125, AS/NZS 3008, AS/NZS 3808, IEC 60332-1-2, Compliant.
