APPLICATIONS:
Signal and Controls Power control or signal/instrumentation cables on machines, conveying equipment or similar industrial applications.
PRODUCT FEATURES:
- UV stabilised
- Flame retardant to IEC 60332-1
- Heat, oil and chemical resistant

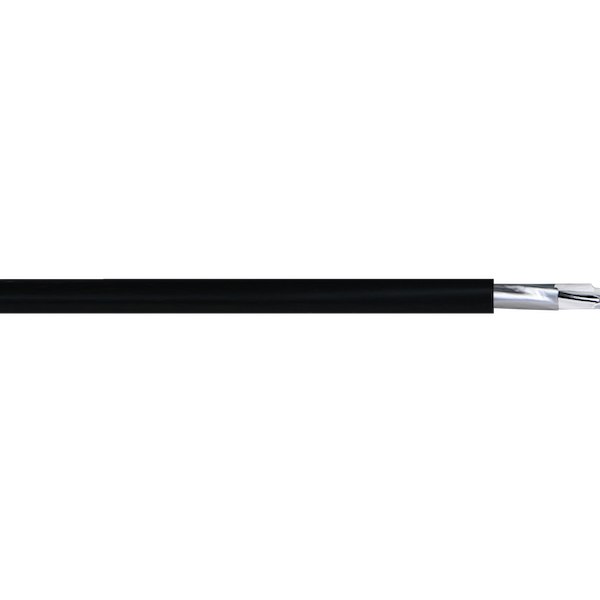

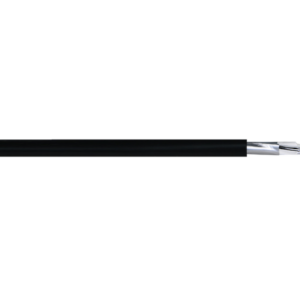

CONSTRUCTION:
Conductor Annealed plain copper stranded (Class 2).
Insulation PVC V-90 HT.
Filler Non-hydroscopic polypropylene filler.
Screening Collective shield of aluminium/polyester foil complete with tinned copper drain wire (7 strands of 0.2mm²).
Sheath PVC 5V-90.
CHARACTERISTICS:
Operating Temperature Range Fixed -20°C to 90°C.
Maximum Conductor Temperature 90°C.
Rated Voltage 110VAC / 150VDC.
Minimum Bending Radius 10 x cable diameter.
Sheath Colour Black.
Standard Core Colours Each pair – 1 x White and 1 x Black conductor, with numbered cores (Triple – White/Black/Red).
Relevant Standards AS/NZS 1125, AS/NZS 3808, IEC 60332-1, ROHS Compliant.
