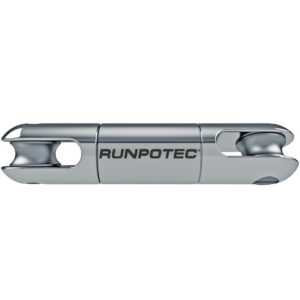

Connection swirl with swivel

Product code: RUNP10176


Runpotec Connection swirl with swivel



  • Stainless steel
  • Corrosion free
  • High quality ball bearings
  • Top price – performance ratio
  • Tensile load 1500 kg

Product code: RUNP10176



Connection swirl with swivel

for horizontal cable pulling with the CW 800 E capstan winch

The connecting swivel is used to connect RUNPOTEC polyester pulling ropes with the cables to be pulled or the deployed pulling die and to ensure twist compensation. Ideally suited in combination with the RUNPOTEC CW 800 E capstan winch.
Made of stainless steel, with the highest quality ball bearings, make the connecting swivel from RUNPOTEC completely corrosion-free and thus one of the highest quality products on the market.
Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.
Optimal application: for horizontal cable pulling in combination with the CW 800 E capstan winch.

Technical Data

Dimensions: L 144 x B 30 x H 30 mm
Weight: 0.52 kg
Total tension load: 1500 kg
Fork-Ø: 12 mm
Material: Stainless steel

Scope of supply

1x Connecting swivel with twist adjustment

Download

RUNPOTEC-data-sheet-Connecting-swirl-with-swivel-RUNP10176
