Cable pulling loop with thread set

Product Code: RUNP10154


Runpotec Cable pulling loop with thread set

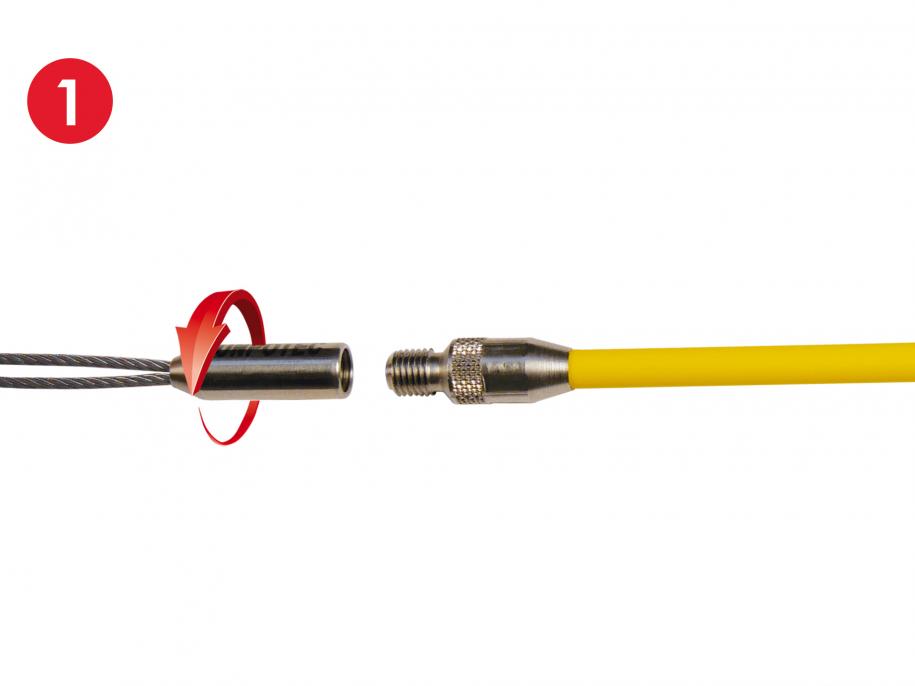

  • Quick attachment to the loop
  • Protects plugs against damage
  • Tensile load transfer to cable, not to the plug
  • Flexible stainless steel loop
  • Pulling of preassembled cable with plug possible
  • Compatible with all RUNPOTEC products with RUNPOTEC Ø RTG 6 mm thread

Product Code: RUNP10154



Cable pulling loop with thread set

for pipes from 14 mm inner diameter

Cable pulling loop with protective cap and RUNPOTEC RTG Ø 6 mm thread. The built-in swivel allows the cable to rotate in the pipe. Easy attachment of cables to the loop. Connectors are protected by tensile stress on the cable. The protective cap allows cables with plugs to be pulled through pipes or in other situations while protecting the plug. Also ideally suited for fixing or pulling several cables together. Due to the RUNPOTEC RTG Ø 6 mm thread all cable pulling loops are compatible to all RUNPOTEC products with RTG Ø 6 mm thread.
Optimal area of application: From 14 mm inner diameter and non-routed cables.

Technical Data

Dimensions: L 300 x B 210 x H 35 mm
Recommended tube-Ø: 20 mm / 25 mm / 32 mm / 40 mm
Weight: 0,04 kg
Material: Special plastic
Ø Rope: 1,5mm/ stainless steel
Loop: Can be adjusted flexibly
Protective cap inner Ø: 12 mm/15 mm/20 mm/27 mm
Protective cap outer Ø: 14 mm/17 mm/23 mm/30 mm

Scope of supply

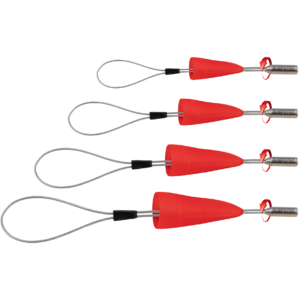

Cable pulling loop set of 4 with thread RTG Ø 6 mm: 1 x protective cap outside Ø 14 mm, 1 x protective cap outside Ø 17 mm, 1 x protective cap outside Ø 23 mm, 1 x protective cap outside Ø 30 mm

Download

RUNPOTEC-data-sheet-RUNPOFIX-with-thread-RUNP10154

Watch video
