Cable pulling grip sock with loop and thread

3 sizes


Runpotec Cable pulling grip sock with loop and thread



  • 3 sizes for varying cable diameter: RUNP20267 (15 – 19mm)
    RUNP20268 (19 – 25mm), RUNP20269 (25 – 31mm)
  • incl. twist adjustment
  • Tensile load up to 180 kg
  • flexible stainless steel wire braiding
  • Extremely long service life
  • Stainless steel
  • Highest quality materials

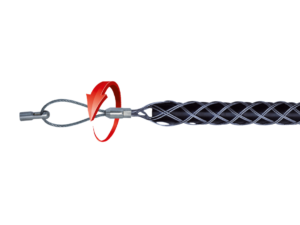

Cable pulling grip (sock) with loop and thread

Cable pulling grip (sock) with loop and RUNPOTEC RTG Ø 6 mm thread including swivel. Made of flexible stainless steel wire mesh. The built-in swivel allows the cable to turn in the pipe, thus preventing the thread from unscrewing. Could also be looped in. Highest quality materials with a long service life! Compatible with GF3, RUNPOSTICKS and fiberglass rods GF4.5 – GF11.

RUNP20267 – for cable diameter 15 – 19mm
RUNP20268 – for cable diameter 19 – 25mm
RUNP20269 – forcable diameter 25 – 31mm

Product Code: RUNP20267 / RUNP20268 / RUNP20269 Categories: , ,

Technical Data

Dimensions: L 300 x B 200 x H 15 mm
Total breaking load: 180 kg
Weight: 0,01kg
Material: Stainless steel wire mesh
Thread: RUNPOTEC RTG Ø 6 mm

Scope of supply

1 x Cable pulling grip with loop and thread RTG Ø 6 mm, incl. swivel

Download

RUNPOTEC-data-sheet-Cable-pulling-sleeve-loop-thread RUNP20267-68-69
