APPLICATIONS:

Lighting & Entertainment For multiple control connections on stages and movie sets.
Medical Industry Suitable for medical devices and test equipment with a threaded collar to prevent accidental uncoupling.
Industrial Connectors Suitable for use on industrial machines and controls, data processing and instrumentation.

PRODUCT FEATURES:

Heavy duty alloy body & base
One lever (steel) locking mechanism to avoid disconnection
IP65 when mated / IP53 for spring loaded hoods

CONSTRUCTION:

Body & Base Aluminium die cast alloy.

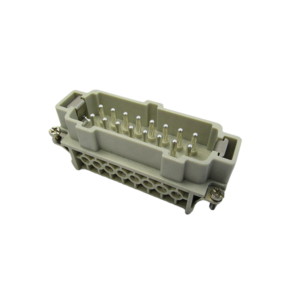

Insert Thermoplastic with wire protection & silver plated contacts 16 Pole + Earth 16A 400V.
Screw Terminal 0.5 – 6.0mm².
Lever Single mild steel.

CHARACTERISTICS:

Operating Temperature Range -40°C to +125°C.
Protection Class IP65 when mated / IP53 for spring loaded hoods.
Relevant Standards DIN VDE 0110, IEC 60664, IEC 60529, UL-E63093, CSA-48932.
